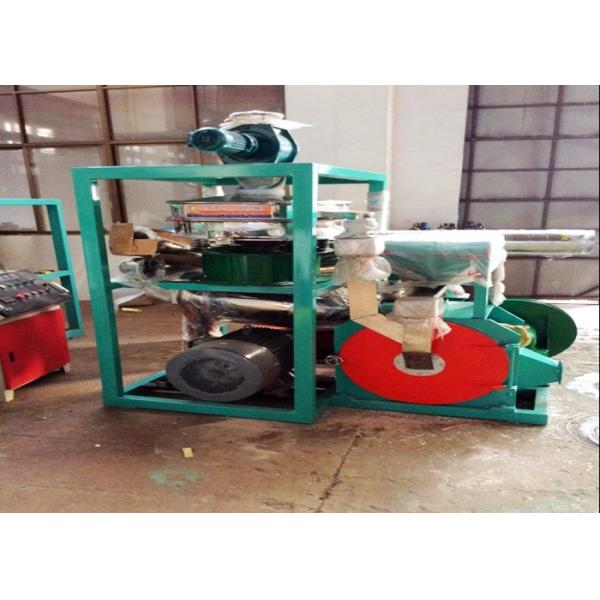

PVC environmental protection Pulverizer Machine
PVC carpet is a widely used plastic material, which is ground into PVC powder. It can be used more widely in PVC.
PVC environmental protection pulverizer is a kind of equipment specially used for grinding PVC materials.
The function of PVC environmental protection pulverizer is as follows:
1, turbine planning, high output, small losses.
2, integrated planning, more manpower, easier to operate.
3, dust-free planning, to ensure environmental protection request.
4, sub cold, water-cooled double cooling, effectively reducing material heating and equipment life.
PVC mill used more and more widely, look forward to the broad masses of customers to purchase our PVC environmental protection mill.
Advantages:
1. This type can grind all kinds Hard & Soft materials into 10-80 mesh powders in normal temperature
2. A widely use range, PVC/PE/PP/ABS/PS/PA/PC Materials
3. This machine has a more higher output, 2 or 3 times than normal miller, equip with Dust collector. An ideal energy saving machine in plastic industries
4. This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system. Automatic and space saving.
5. The sword adopted imported stainless steel, durable, can work continous
6. Knife can be adjusted easily, easily maintained and control
7. Main shaft adopted SKF, matched with oil pump imported, can used about 3-4 years in normal use.
Technical Specification
| Type | YMSMP-500 |
| Electricity | 380V/3PHASE/50HZ |
| Power | Main motor | 37kw |
| Fan | 4kw |
| Main motor | Rotating motor | 24pieces |
| Fixed blade | 12pieces |
| Feeding | automatic | vibration |
| Colling mode | water | AIR-cooled |
| Rotating speed | minute | 3900rpm |
| Capacity | H | 80-250KG |
| Electrical Equopment Shaft | contactor1 | delixi | CJX-2-80 220V |
| contactor2 | delixi | CJX-2-100 220V |
| SKF | 6312 |
| Dusting | bag |
| Protection equipment | High and low voltage protection Overload protection Suction device Dust collecting bag protection with 9 bags |
